Aquatech Rapid/X6 225 litre

Aquatech Rapid/X6 225 litre

Supply Only $2,950.00

Supply & Install $2,350.00 Supply & Installation Orders
To order supply and installation, call:
(02) 4226 4400
Additional $185 if a tempering valve is required.


Category Brand:

Description

Same-Day Supply Available

Aquatech Rapid/X6
Heat Pump Hot Water

225L of efficient hot water for households of up to 6 people. Wi-Fi enabled, solar-ready, and backed by a 5-year system warranty. Australia’s best-value top-performing heat pump.

225L
Capacity
5.00
COP Rating
5yr
System Warranty
Up to 70%
Energy Savings

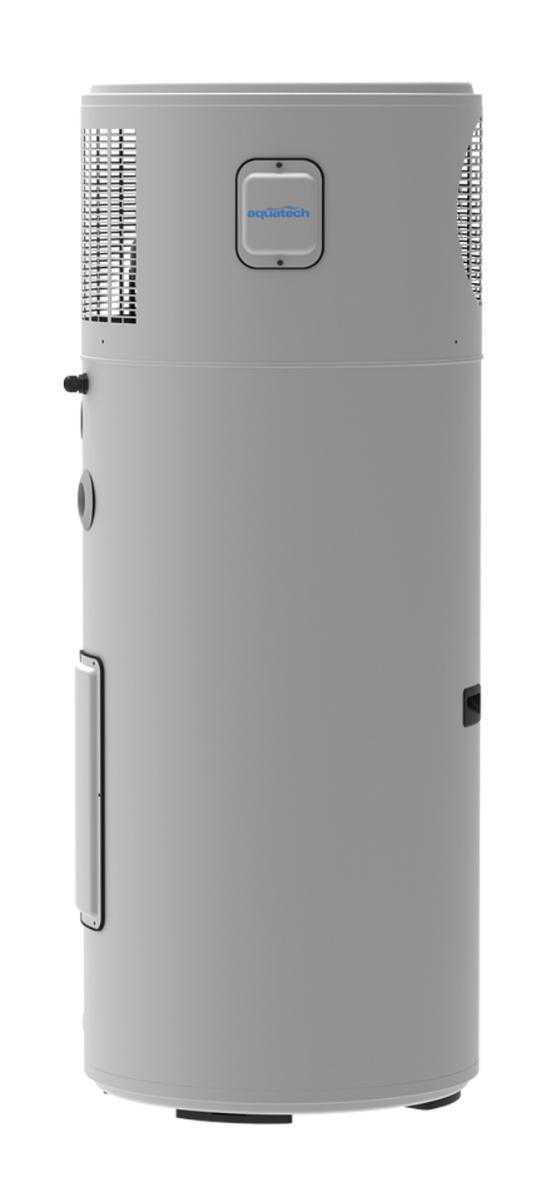

Aquatech Rapid X6 225L Heat Pump Hot Water System

✓ Transparent Pricing
🔧 Fully Licensed
📱 Wi-Fi Enabled
🛡️ 5yr System Warranty
📍 Illawarra Local

Why Choose This System

Smart Technology, Real Savings

The Aquatech Rapid/X6 uses advanced heat pump technology with R290 natural refrigerant to deliver significantly more hot water per dollar than a standard electric system. Ideal for households of up to 6 people.

Cut Your Bill by Up to 70%

The Rapid/X6 uses heat from the surrounding air rather than generating it directly. With a peak COP of 5.00 at 20°C wet bulb, every $1 of electricity delivers $5 of heating under optimal conditions.

📱

Wi-Fi Control via Tuya App

Control and monitor your system remotely via the Tuya smart home app. Adjust modes, set timers, and monitor performance from your phone. Compatible with 2.4GHz Wi-Fi networks.

🌡️

Works Down to -15°C (with element)

Heat pump operates from -5°C to +43°C. The backup 1800W electric element extends that range down to -15°C, guaranteeing hot water all year round regardless of conditions.

☀️

Solar Ready

Five smart heating modes — including Hybrid and Hybrid+ — are designed to maximise solar PV self-consumption. The built-in timer runs heating during the day when solar generation is highest.

📋

STC Rebates Available

The Rapid/X6 qualifies for federal Small-scale Technology Certificates across all climate zones, reducing your upfront cost significantly. We handle all the paperwork.

📍

Local Illawarra Install

Installed by our licensed local team. Same-day and next-day availability across Wollongong, Shellharbour, and the Illawarra region. Must be installed by a licensed plumber.

Aquatech Rapid X6 smart heating modes
Five Smart Heating Modes

Built Around Your Home

The Rapid/X6 controller offers five modes — ECO, Standard, Hybrid, Hybrid+, and Element — so you can match the system to your household’s usage, tariff, and solar setup.

  • ECO mode. Heat pump only, lowest running cost
  • Hybrid and Hybrid+ for solar or off-peak tariff optimisation
  • Built-in timer runs heating between 08:00 and 18:00 by default
  • Legionella protection cycle built into controller

Aquatech Rapid X6 tank construction
Built to Last

5-Year System Warranty

The Rapid/X6 is backed by a comprehensive 5-year system warranty covering all parts, plus 2 years of labour cover from Aquatech Solar Technologies Pty Ltd.

  • 5 years parts — tank, electronics, and refrigeration system
  • 2 years labour via approved Aquatech service agents
  • Blue Diamond enamel-lined tank with impressed current anode protection
  • Australian Consumer Law protections apply

📐

Technical Specifications

ModelAquatech Rapid/X6
Storage Volume225L (222L heated)
Recommended Household SizeUp to 6 people (warm climate, 24hr tariff)
Compressor Draw / Capacity900W / 3500W
Electric Element Rating1800W
COP @ 20°C Wet Bulb5.00
COP @ 15°C Wet Bulb4.68
COP @ 7.5°C Wet Bulb3.45
Ambient Range (Heat Pump)-5°C to +43°C
Ambient Range (with Element)-15°C to +50°C
Max Temp (Heat Pump / Element)60°C / 70°C
Heating ModesECO, Standard, Hybrid, Hybrid+, Element
RefrigerantR290 / 400g / 3000 kPa
CompressorGMCC Toshiba Rotary
Heat ExchangerMicrochannel / Aluminium Alloy
Inner Tank MaterialCarbon Steel — Blue Diamond Enamel (Class X)
Inner Tank ThicknessDome 3.0mm / Wall 2.5mm
Anode ProtectionNon-sacrificial impressed current + backup magnesium
InsulationPolyurethane 40mm
Noise Level42 dB(A) sound pressure / 61 dB(A) sound power
Dimensions (unpacked D × H)620mm × 1580mm
Net Weight / Packed Weight103kg / 118kg
Supply Voltage220–240V / 50–60Hz
Min Circuit Rating10A single phase
PTR Valve Rating850 kPa
Water Connection Size3/4″G
ConnectivityWi-Fi 2.4GHz / 5GHz via Tuya Smart App
STC Zone 4 (2025)18
Minimum Indoor Room Area67 m² (or fully outdoors)

Peace of Mind

Warranty Coverage

The Aquatech Rapid/X6 is backed by a comprehensive 5-year warranty from Aquatech Solar Technologies Pty Ltd, covering all system parts with 2 years of labour included.

🔧
2yr
Labour Warranty
Labour costs for fitting or replacing covered parts are fully covered for 2 years when completed by an Aquatech approved service agent. Parts remain covered for the full 5-year period.
📞
Support
Aquatech Service Team
Contact Aquatech Solar Technologies directly for warranty claims and service support. Phone: 1300 769 904. Email: info@aquatechheatpumps.com.au.

Save More Upfront

Government Rebates & Energy Certificates

Applicable incentives are applied as a point-of-sale discount. No claiming, no paperwork on your end.

New South Wales
Up to $1,400+ off

All STCs and ESCs are assigned as a point-of-sale discount for supply-and-install pricing. We handle all the paperwork and pass the saving directly to you.

Small-scale Technology Certificates (STCs)Energy Savings Certificates (ESCs)

Shipping

Delivery Information

🚚
Free Delivery Available
Within 50 km of major towns

This hot water system is offered with free delivery to the following areas:

WollongongSydneyCentral CoastNewcastleMelbournePerthSouth East Queensland

All sales need to be within a 50 km radius of a town with a population over 30,000. For all other areas, please phone to check delivery options.

⚠️

Outside the areas above? Please call before ordering. Purchases outside our free-delivery zones will be refunded as delivery cannot be arranged.

Downloads

Product Resources

Brochures, manuals, and compliance documents for Aquatech Rapid/X6.

📄Spec SheetPDFSpecifications & features
📖User Manual PDFSetup and operation guide
🛠️Quick Install GuidePDFFor licensed installers
